Ultrasonic Metal welding

Metal welding is used in the automotive and electronics industries to produce batteries, cable connections, etc. In metal welding, metals are welded in high temperatures, for instance. We differentiate between metal active gas (MAG) and metal inert gas (MIG) welding. Active gases form a connection with the metal, inert gases do not.

Ultrasonic welding, on the other hand, uses ultrasonic waves to join the metals. The ultrasonic welding of metals is a cold welding process, as barely any heat is generated apart from at the weld spot. At this point, high-frequency sound waves are introduced to the parts being welded. Precise tools make it possible to retain a consistent quality during each weld process, and to have reproducible results each time.

Advantages of ultrasonic metal welding

The ultrasonic metal welding process has a few advantages compared to conventional welding methods such as gas metal arc welding:

  • Ultra fast: The entire process lasts for mere split seconds.
  • Precise: Ultrasonic welding is spot-on. A vast number of welding parameters ensure precise and reproducible results. This is particularly important for welding the smallest metal parts, e.g. in batteries.
  • Cost-efficient: No other additives such as solder are required.
  • Environmentally friendly: Very little energy is consumed and no chemicals are used.
  • Characteristic: Ultrasonic welding ensures a high degree of strength and excellent electrical conductivity at the joined points.
  • Gentle: The metals are not damaged or deformed apart from the weld spot.
  • Safe: No sparks or smoke are generated during ultrasonic welding.


How ultrasonic welding of metal works

The generator provides a high frequency. This frequency is then transformed into mechanical vibrations in the converter. The amplitude transformer changes the amplitude of the vibrations. The sonotrode can do this as well. Its main task is to introduce the ultrasonic energy into the top of the application horizontally. The ultrasonics cause it to move while the anvil holds the bottom of the application in place. Friction is generated. Here, the roughness peaks of the metal are rubbed off, the top (oxide) layer is broken up and the metal is plastically deformed. Now, the applications can be joined without them melting. This is perfect for welding thin metal, films and wires.

The ultrasonic metal welding process essentially causes materials to become so plasticized that the molecules of both layers end up mixing together. This type of vibration welding causes materials to move so fast that the different layers become intermixed. When the tool is taken away, what results is a single solid piece, as opposed to two separate ones, thanks to the molecules being forced into forming new bonds with each other. In addition, the amount of power required for creating this type of cold metal welding bond is much less than a traditional welding system, while also leaving a stronger weld. For these reasons and many more, ultrasonic welding can be the ideal solution for many kinds of bonding applications.

Application Engineering

Areas of application for ultrasonic welding of non-ferrous metals

Ultrasonic welding is used in various industries and sectors:

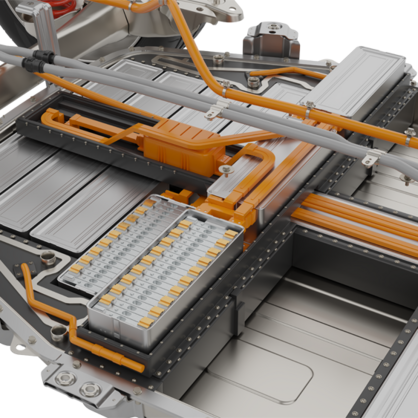

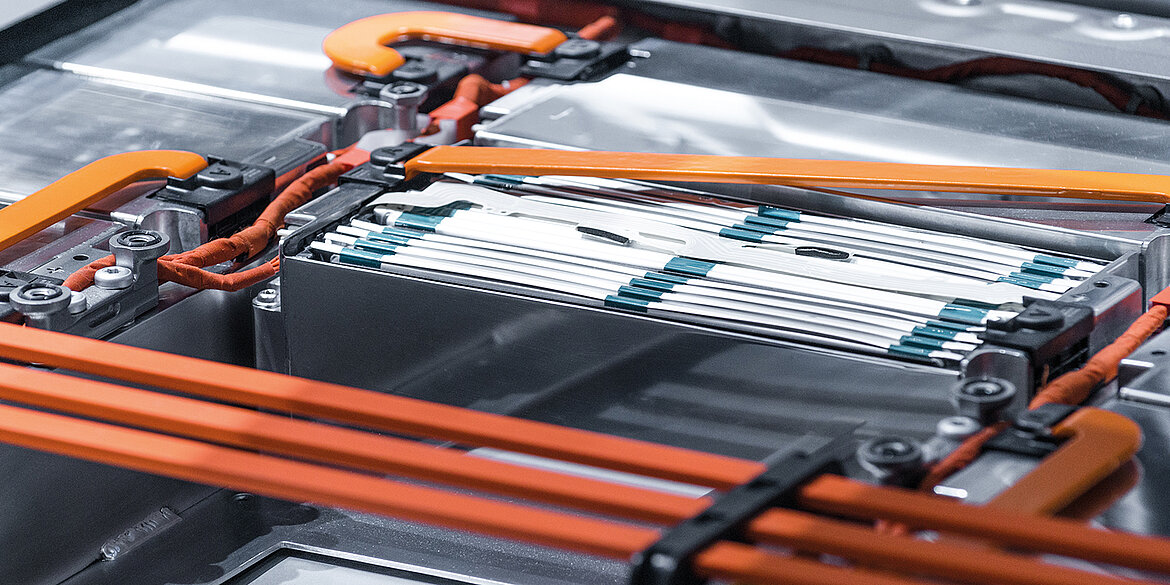

Battery: There is an increasing demand for lithium-ion batteries (LIBs). Joining anodes (copper foil) and cathodes (aluminum) together requires the best joining technology with long-term process reliability. Ultrasonic welding is a reliable method for manufacturing batteries

Lithium-ion battery use case
Metal parts welded by ultrasonics for a car seat heater

Automotive: In the automotive industry, manufacturers of cable harnesses rely on the ultrasonic welding technology. Components for car interiors are joined using ultrasonics. Components made of chrome, e.g. trim elements such as chromium rings, can be bonded.

Electronics: Cable and terminal connections can be welded quickly, safely and precisely using ultrasonic technology, with no danger to the sensitive technology.

Busbar welded with ultrasonics

Application solutions of non-ferrous metals

Smartphone battery - welded by ultrasonics
Welded wiring harness
Application solution: button cell welded with ultrasonics
Busbars - ultrasonic welding of metal
Prismatic battery cell illustration

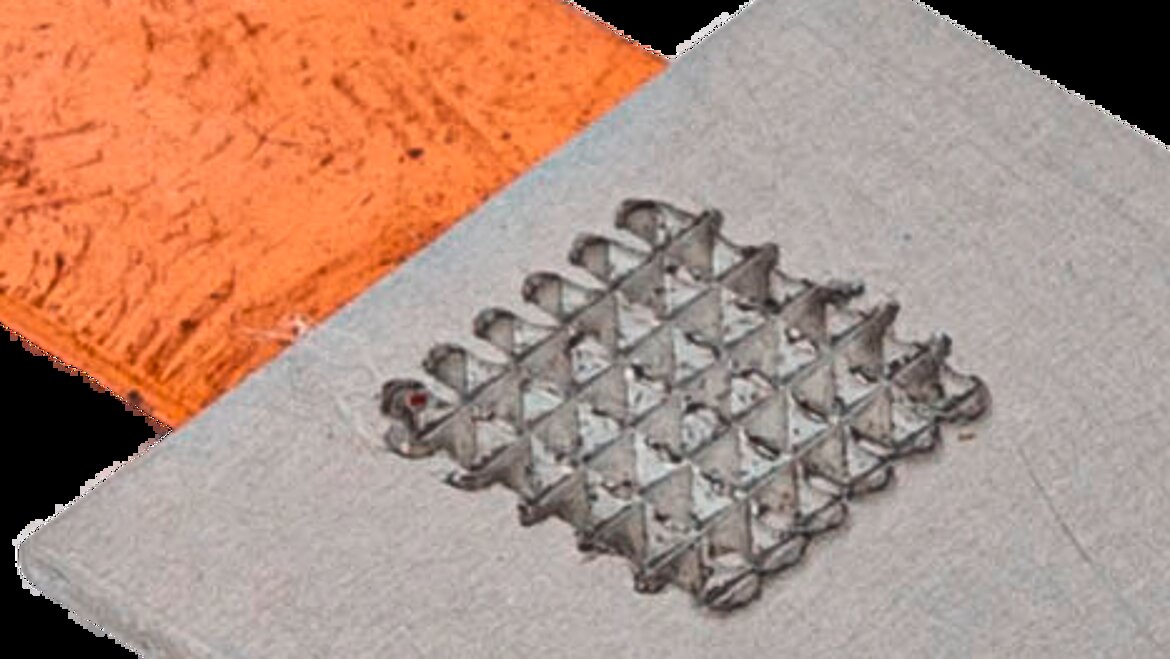

process ultrasonic welding of metal foils

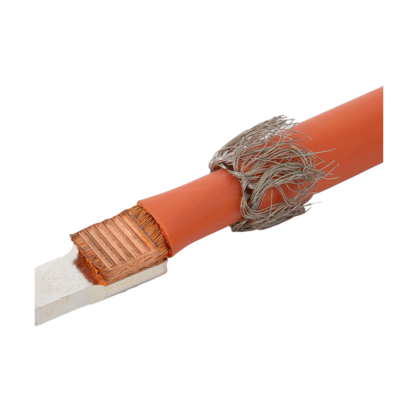

Cable terminal welded by ultrasonics


AUTOMOTIVE, BATTERY pdf 2 MB pdf 1 MB pdf 2 MB
perfect product

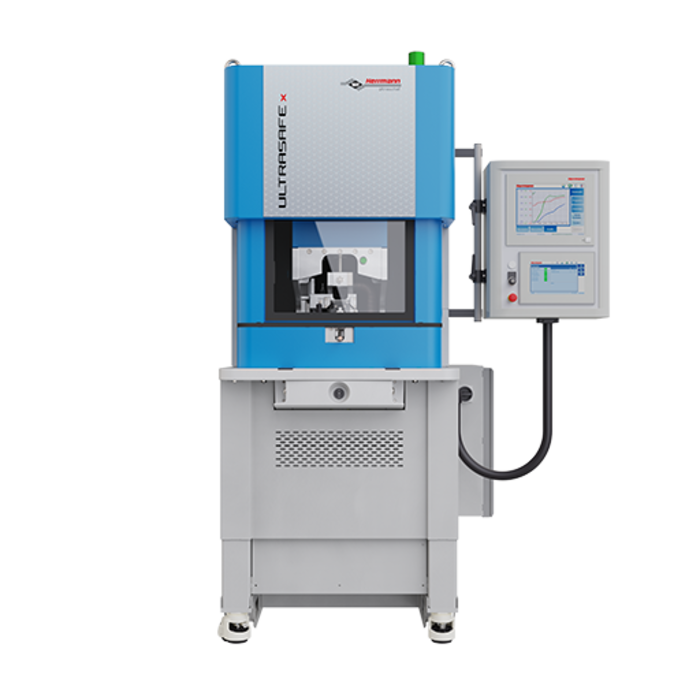

Ultrasonic welding machines and systems

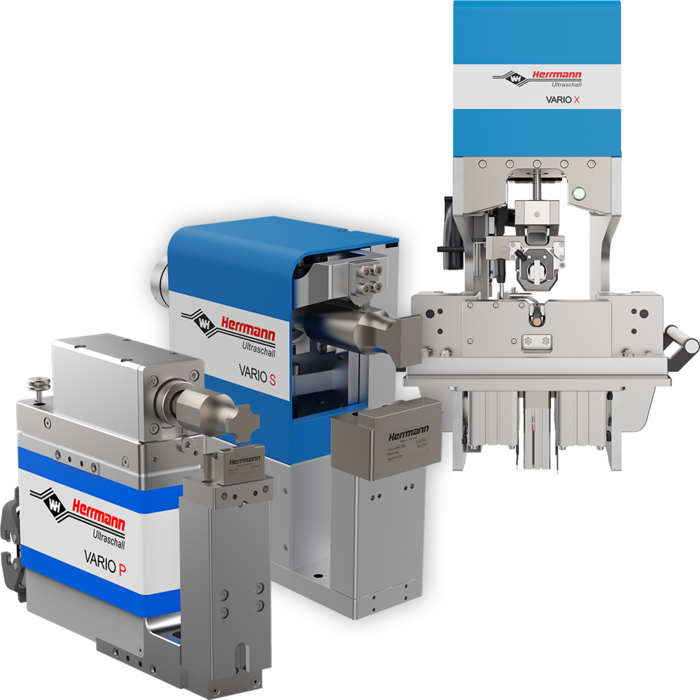

The Herrmann Family of Ultrasonic Metal Welders

Our line of ultrasonic metal welders is ideal for welding battery components, cables, and terminals in the automotive, electronics, and energy sectors. At Herrmann Ultrasonics, we produce specific machines optimized for each of these tasks.

HiS VARIO B is great for the ultrasonic welding of copper or aluminum as part of battery assembly. Designed for either integration into automated equipment, or manual operation, this product provides patented, accurate and repeatable sonotrode alignment and quick tool changes. EtherCAT, PROFINET IO and EtherNet/IP interfaces are available.

For ultrasonic welding aluminum or copper cable to terminals, consider HiS VARIO W. This too is offered as a manual workstation or automation integration. Quick, reproducible tool change and precise sonotrode alignment for quality results across various assemblies. Large gauge cables up to 95 mm2 can be welded.

Terminal welding is addressed by HiS VARIO T. Busbars and power distribution assemblies are quickly adapted in this modular design.

The heart of all Herrmann Ultrasonics’ machines is the ULTRAMETAL digital ultrasonic generator. Intended for intermittent applications, this product is available in 20 and 35 kHz frequencies with power from 1200W to 6200W. Whenever you’re trying to find an ultrasonic metal welder for sale, make sure this is the generator it uses.
